SPECIFICATIONS

Brand Name: NONE

For Vehicle Brands/Model: Volkswagen

Functions: driving light,brake light,turn signal light

High-concerned chemical: None

Item Diameter: 43.5

Item Type: Tail Light Assembly

Item Weight: 0.35

Light source: 2835SMD

Model Name: LG02014

Origin: Mainland China

Size: 435MM*40MM*21MM(Lx Wx H)

Special Features: with Yellow Flowing Signal Lamp

Voltage: 12 V / 24 V

brake light: 0.17A/2.2W

driving light: 0.05A/0.65W

turn signal light: 0.28A/3.65W

Features:

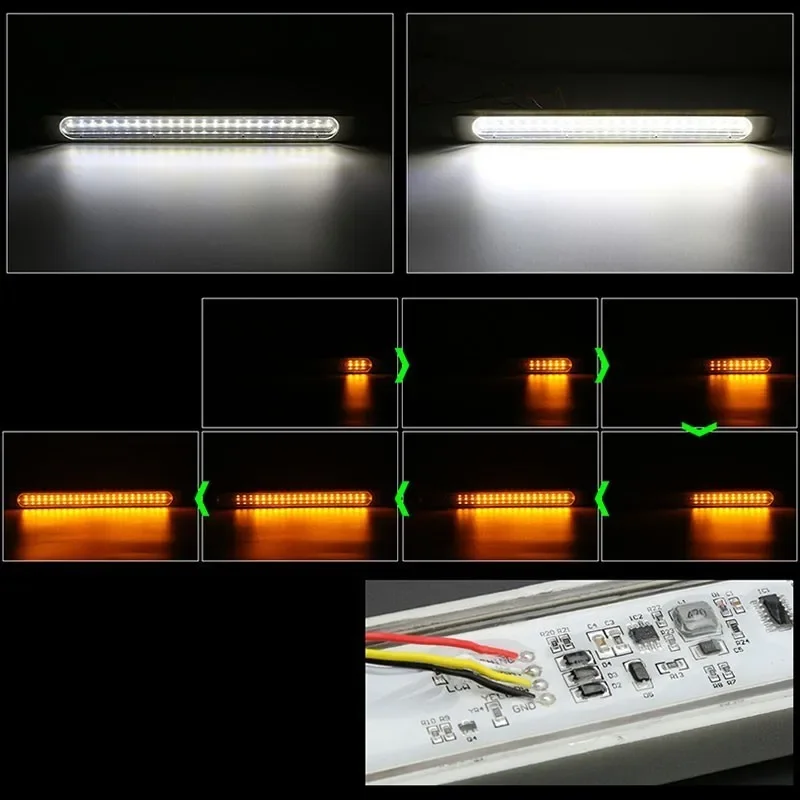

*Newest Design,Sequential Yellow Flowing Signal Light
*COMPLETELY SEALED AND WATERPROOF IP68
*Super bright,each light has 72 Super Bright Diodes for a Bright Performance.

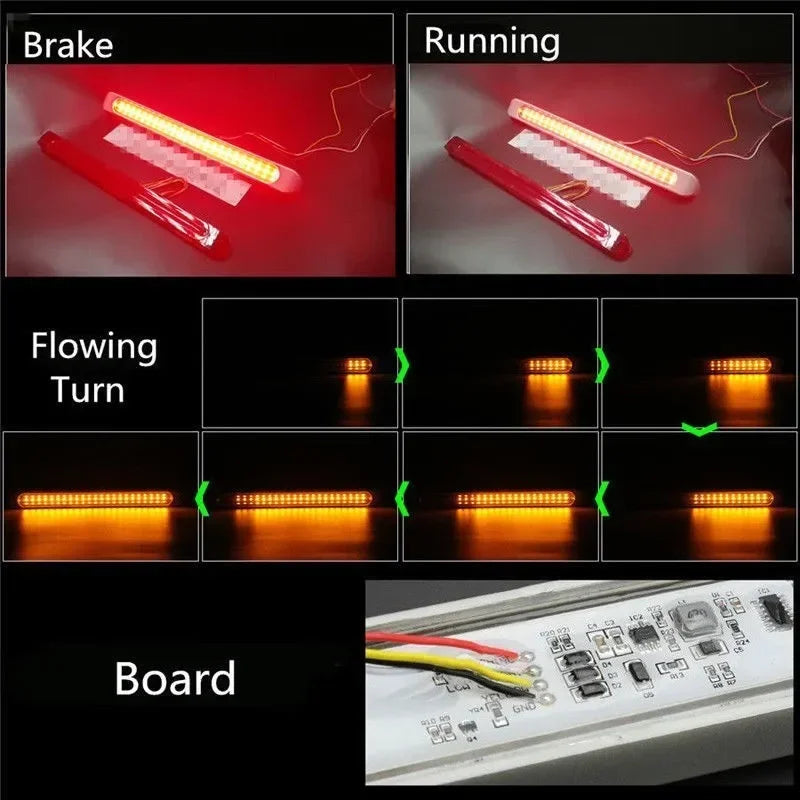

*3 IN 1 Functions, side marker or identification light, stop, turn, tail and brake light.
*Comes with a Polycarbonate Lens with All Weather Housing for durability.
*Convert your old incandescent lights to more modern LEDs.

Application:
Universal for Any 12-24V Heavy trucks. fit for semi trailers, cargo trailers, boat trailers, work vehicles and a wide or narrow overland vehicle requiring quality DOT rated lighting.

Specification:
Condition: New
Waterproof level: IP68
Voltage:12-24V
Wattage & Current:Running Light 0.05A/0.65w; Brake Light 0.17A/2.2W; Turn Signal 0.28A/3.65W
LED Type: 72 LED/each piece

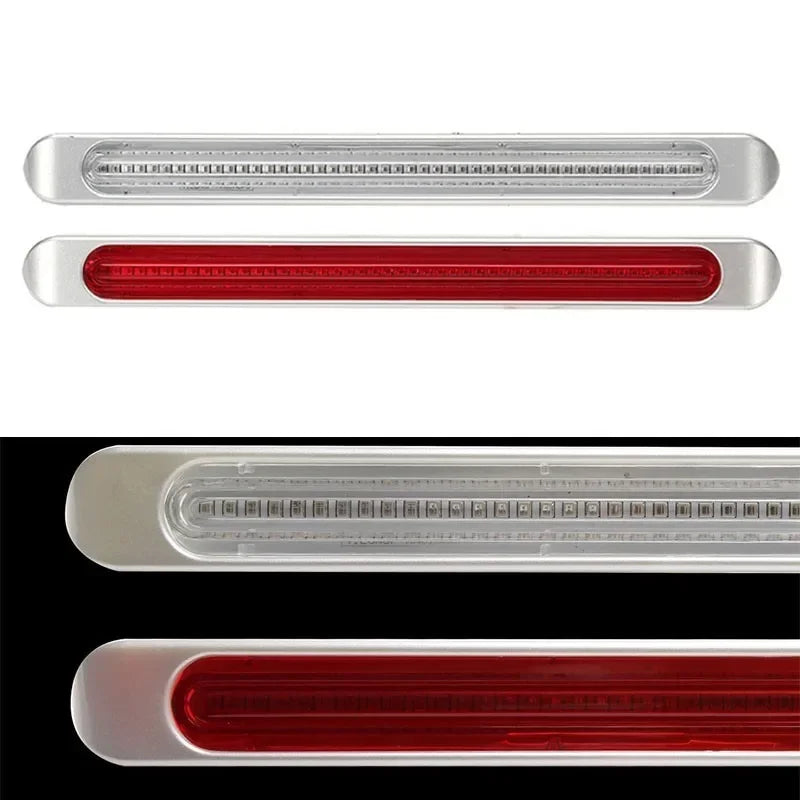

4 types of color options:

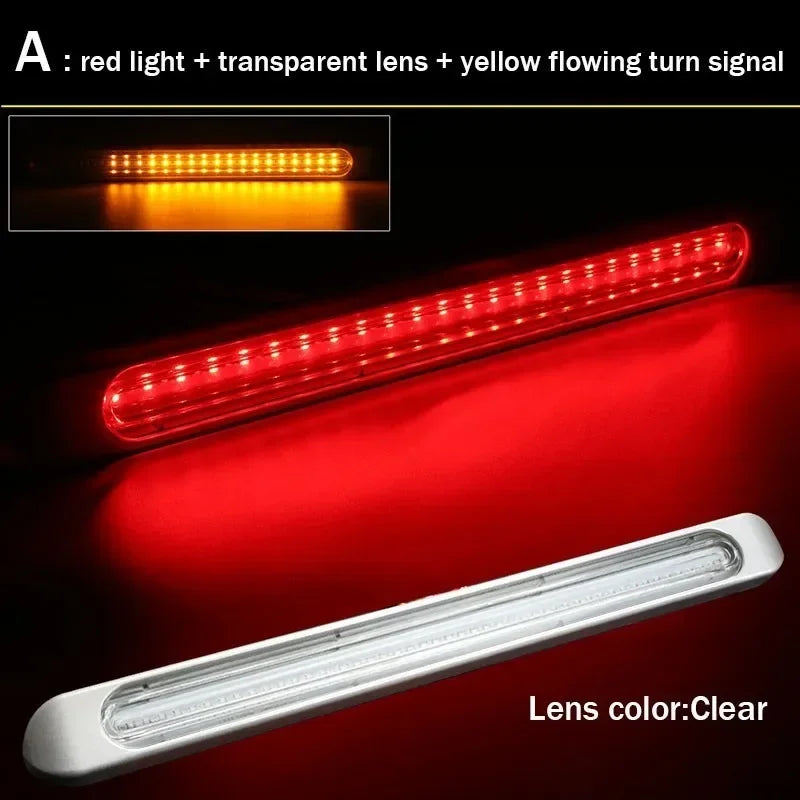

A:red light + transparent lens+ yellow flowing turn signal

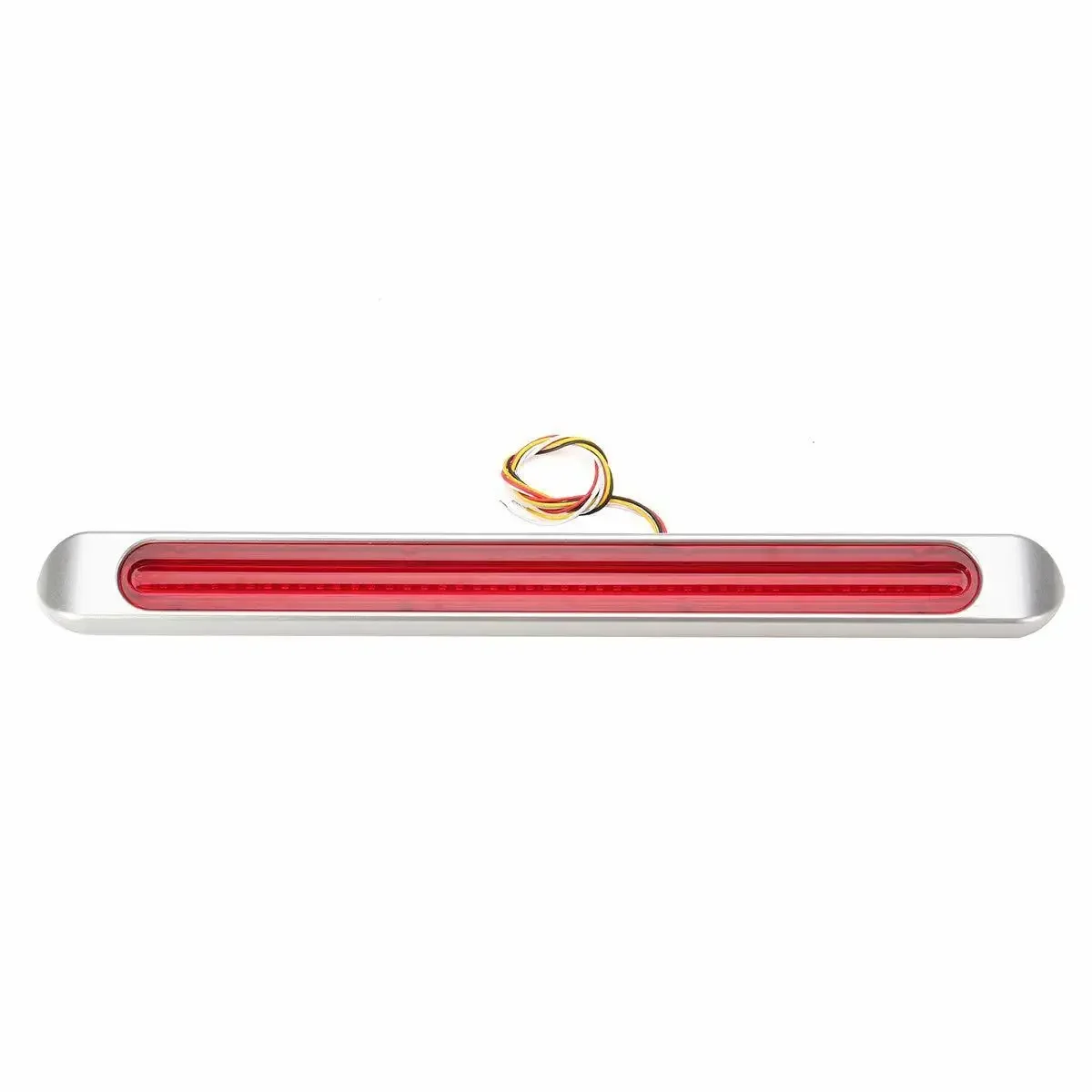

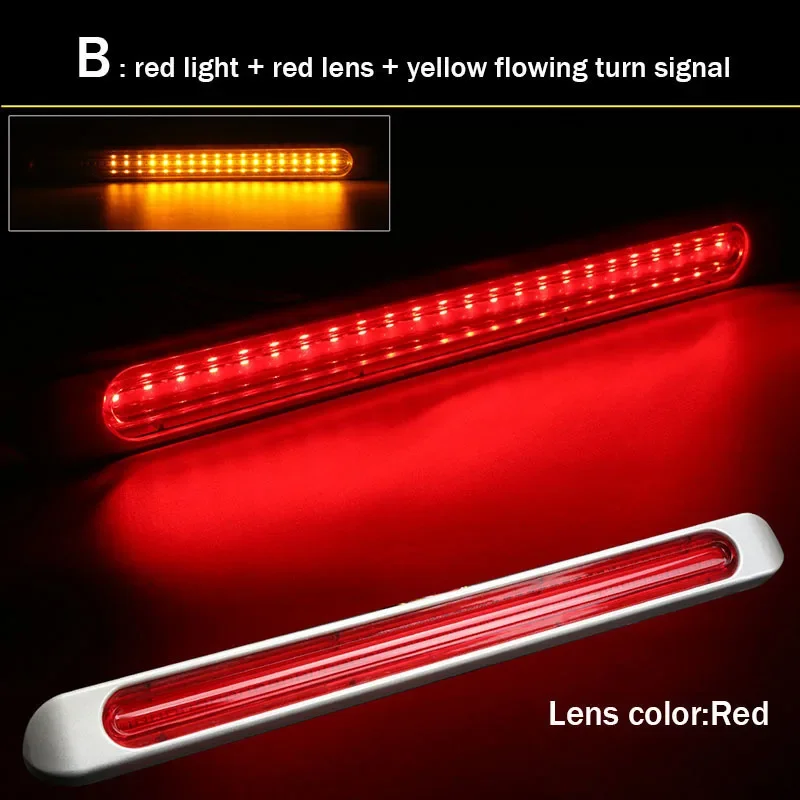

B:red light + red lens + yellow flowing turn signal

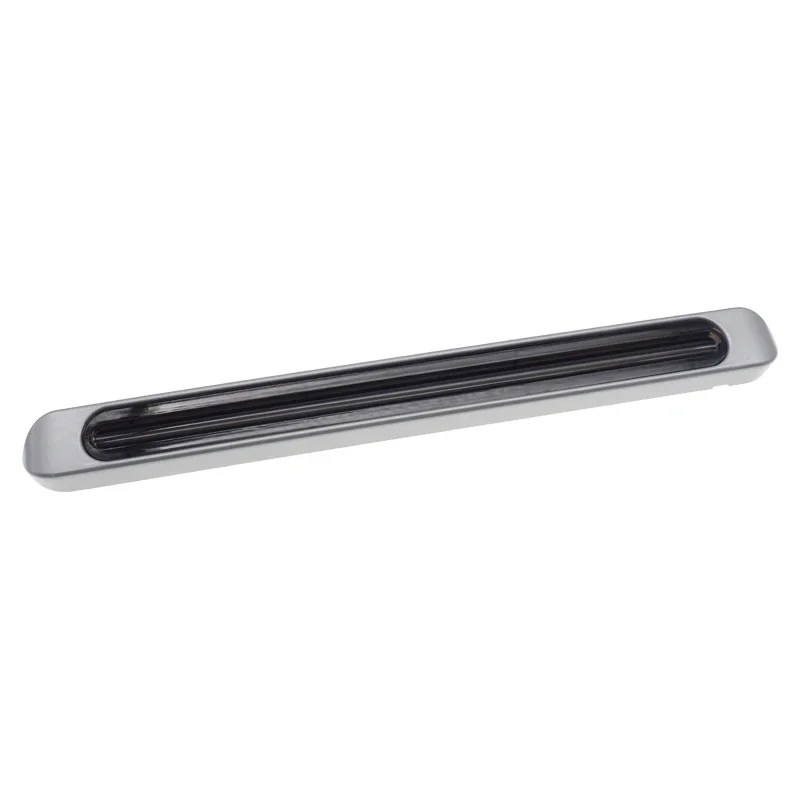

E : Smoke Lens + Red Flowing Light + Yellow Flowing Turn Sinal

Material: PC+ABS (Polycarbonate Lens)

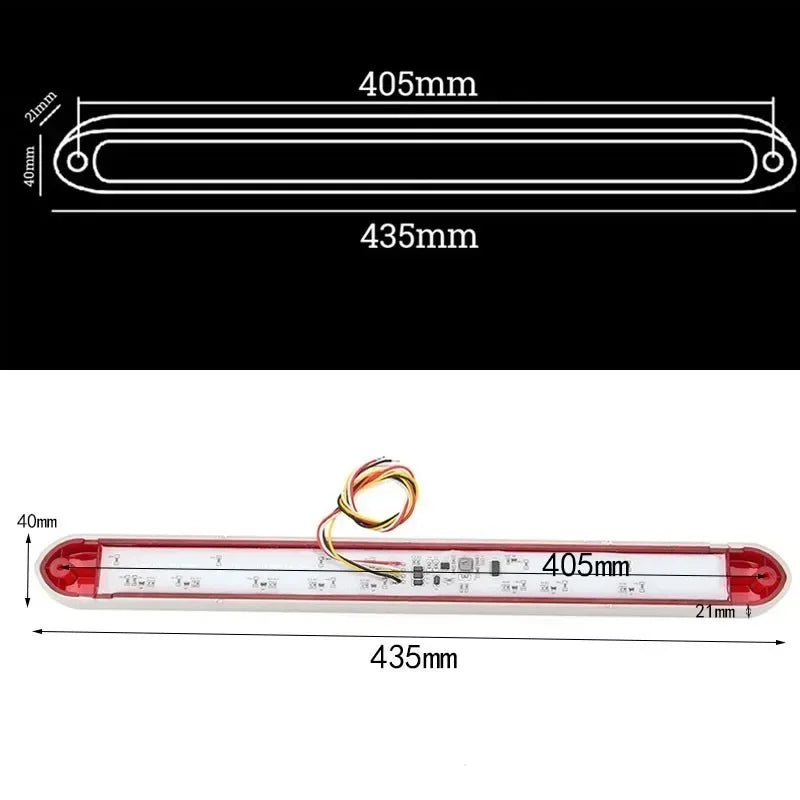

Size:435MM*40MM*21MM(L X W X H)

Two Bolts Distance (Center To Center): 403mm

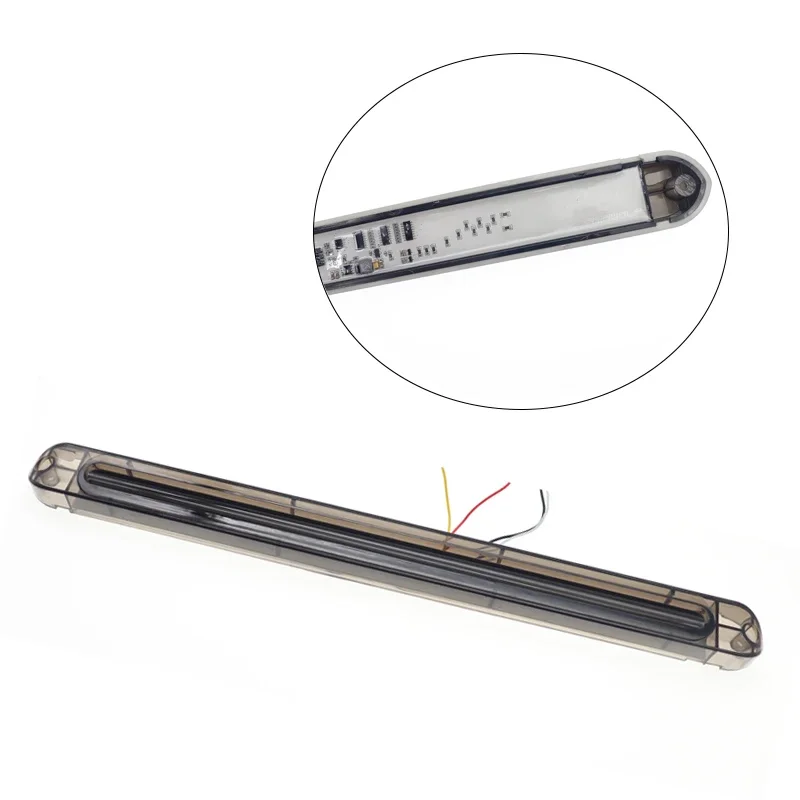

Wire Connection:

Black Wire: Negative

Yellow Wire: Turn light

Red Wire: Stop Light

White Wire: Tail Light
